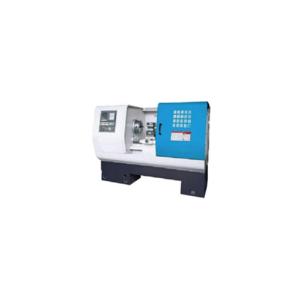

CNC Lathe Machine CK-360/1000
SKU : CPI-TMWY-CK-3601000
Harga : Call
Pesan di
Mesin Bubut
Specifications: Max. swing over bed:Φ360 mm Swing over cross slide:Φ150 mm Distance between centers:1000 mm Bed width:206 mm Spindle nose:A2-5 Spindle bore:Φ50 mm Spindle speed:60 - 2500 rpm (variable Travel X/Z axis:210/1000 mm Rapid speed X axis:6000 mm/min Rapid speed Z axis:8000 mm/min Tailstock taper:MT4 Tailstock quill stroke:120 mm Tailstock quill diameter:Φ55 mm Max size of tool post:20 x 20 mm Nose of tool position:39,544 Repeat positioning accuracy:8 μm Min setting unit of X axis:1 μm Min setting unit of Z axis:1 μm Main motor:3 kW Connecting voltage:400V / 3 ph / 50 Hz Packing size:2300 x 1100 x1650 mm Machine weight:1600 kg
