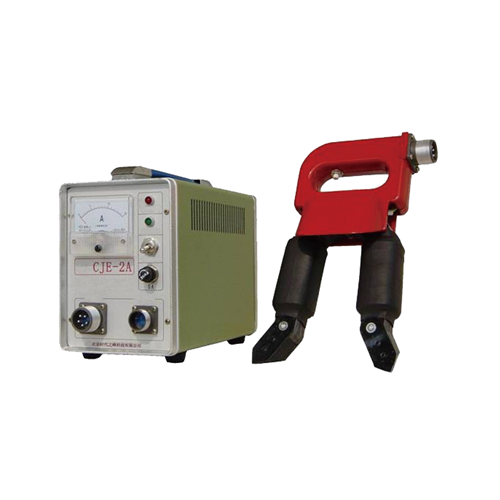

Magnetic Particle Testing TCJE-2
SKU : CPI-TIME-TCJE2
Harga : Call
Pesan di
Technical Specification Input voltage: AC 220V ± 10%V Output voltage: AC 36V Output current: >10A Magnetization method: AC Probe: A Lifting force: ≥55N(5kg) Temporary load rate: 50% Distance between [magnetic yoke probe poles]: 0~255mm Distance between [horse-shoe probe poles]: 0~160mm Distance between [ring-type magnetic poles]: Φ150mm 1800AT *Note: Three probes are in common use, but only one with a random in the standard delivery. Dimension: 230×160×120mm Net weight: 5kg Standard Delivery ● Power box [1] ● Magnetic yoke(≥55N) [1] ● Power cord [1] ● Light bulb (5W/12V) equipped with horse-shoe probe [5] ● Fuse (5A) [5] ● Instruction manual [1] ● TIME certificate [1] ● Warranty card [1]
