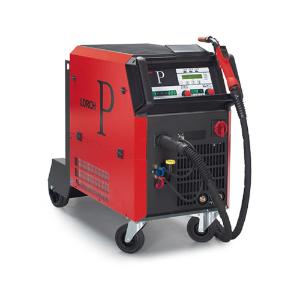

MIG-MAG (Multi Process) Welding Machine P 3500
SKU : CPI-LORCH-MMP3500
Harga : Call
Pesan di
Technical Data: MIG-MAG Welding range (in A) : 25-350 Voltage setting : infinitely variable Duty cycle Duty cycle 100% 40 °C (in Amps) : 260 Duty cycle 60% 40 °C (in Amps) : 300 Duty cycle at max. current 40 °C (in %) : 30% Feeder and wire Wire feed unit : 4 rolls (2 driven) Weldable wires steel (in mm) : 0,6-1,2 Weldable wires aluminium (in mm) : 1,0-1,2 Mains voltage (in V) : 400 Phases (50/60 Hz) : 3~ Positive mains tolerance (in %) : 15% Negative mains tolerance (in %) : 15% Mains fuse (in Amps) : 16 Mains plug : CEE 16 Dimensions and weights Dimensions (LxWxH) (in mm) : --- Power source dimensions (LxWxH) A version (in mm) : 1116x463x812 Power source dimensions (LxWxH) B version (in mm) : 1116x445x855 Weight (in kg) : --- Weight, power source A-version Gas-cooled (in kg) : 92,8 Weight, wire feed case (workshop version) (in kg) : 20,2 Weight, water cooling (filled) (in kg) : 14,7 Standards and approvals standard : EN 60974-01 protection class (EN 60529) : IP23 insulation class : F designation : CE, S Include Accessories : ▪ MIG Gun ▪ Ground cable ▪ Ground clamp ▪ Gas regulator
