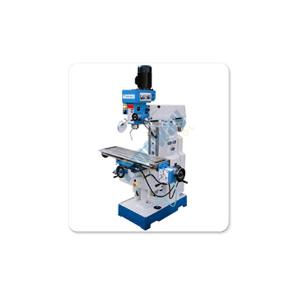

Milling Drilling Machine MD400

SKU : CPI-TMWY-MD400

Harga : Call

Pesan di

Dapatkan harga terbaik Kami

Alat Bor dan Penggiling
Technical parameter Table size (W×L):280x1120(1250)mm Table travel (X/Y/Z) - Manual/auto:600/260/300mm Table t-slots(No./Width/Pitch):3-14-70mm Max. loading of worktable:150kg Spindle taper:MT4(V), ISO40(H)- Spindle speed range: - Vertical:(12steps)40-1300r.p.m - Horizontal:(12steps)40-1300r.p.m Spindle travel:120mm Max. drilling capacity auto. feed:-mm Spindle quill auto. feed:-mm Micro feed function:Yes- Distance from vertical spindle nose to table:90-410mm Distance from vertical spindle center to column:120-600mm Distance from horizontal spindle center to table:0-300mm Head Swivel (L & R):±90° Main motor power:0.85/1.5(V), 2.2(H)kw Overall dimension:1660x1340x2130mm N.W/G.W:1250/1350kg
