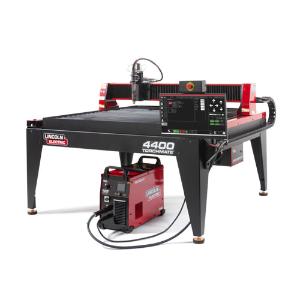

CNC Plasma Cutting Systems TORCHMATE 4400

Features: • A complete cutting system with high-grade SINGLE-SOURCE components • A maximum cutting range of 1,250 x 1,250 mm for TM 4400 • A FLEXCUT 125A air plasma power source for cutting and marking • An ACCUMOVE control with Windows 10 incl. CAD/CAM SOFT WARE and 20 inch touch-screen • A water-filled cutting table • A mobile system requiring little floorspace (movable with a forklift!) • Simple setup and installation and minimal learning curve for operators • A system ready to go into operation within one hour after delivery and installation • A two-year manufacturer’s warranty on all components supplied by LINCOLN ELECTRIC Cutting Solutions • Get started cutting quickly high-quality metals like mild steel (up to 25 mm), stainless steel and aluminum Specifications: Table Dimensions : 188 cm x 171 cm x 161 cm Machine Weight : 382 kg Tool Capacity : 2 Water Capacity : 230 Liter Material Capacity : 25 mm Mild Steel Power | Air Requirements HMI | Motion Control : 230V / 16A 115V / 15A Dedicated Circuit Air : 6-7.5 bar 380 SCFH 180 SLPM Single Phase : 200-208V bzw. 230V / 1 / 50 / 60 Three Phase : 200-208V / 230V / 380V / 460V / 575V / 3 / 50 / 60 Machine Ground : Dedicated Earth Ground Supplied By Other Precision Gear Rack And Pinion Drive System Stepper Motors : ( 3 ) 2,8 Nm Belt reduction : ( 3 ) 3:1 Linear Guidance : 20mm Pro le Linear Rail Gear Engagement : Spring Loaded Gantry Carriage : Milled 3/8” Aluminum Traverse Speed: 12700 mm/m / 500 ipm Machine Repeatability : 0,00381 cm Gantry Clearance : 12,7 cm Frame Construction : 0,48 cm Mild Steel *Cut Capacity | Speed (Mild Steel) Maximum Pierce Capacity : 25 mm 1/4” in. ( 6.35 mm ) : 5300 mm/min 1/2” in. ( 12.7 mm ) : 2200 mm/min 3/4” in. ( 19 mm ) : 800 mm/min Applications: • Small Metal Fabrication Shops • Sheet Metal Contractors • Hobbyists & Artists • Custom Vehicle Fabricators • Prototyping • Education • Racing Industry
