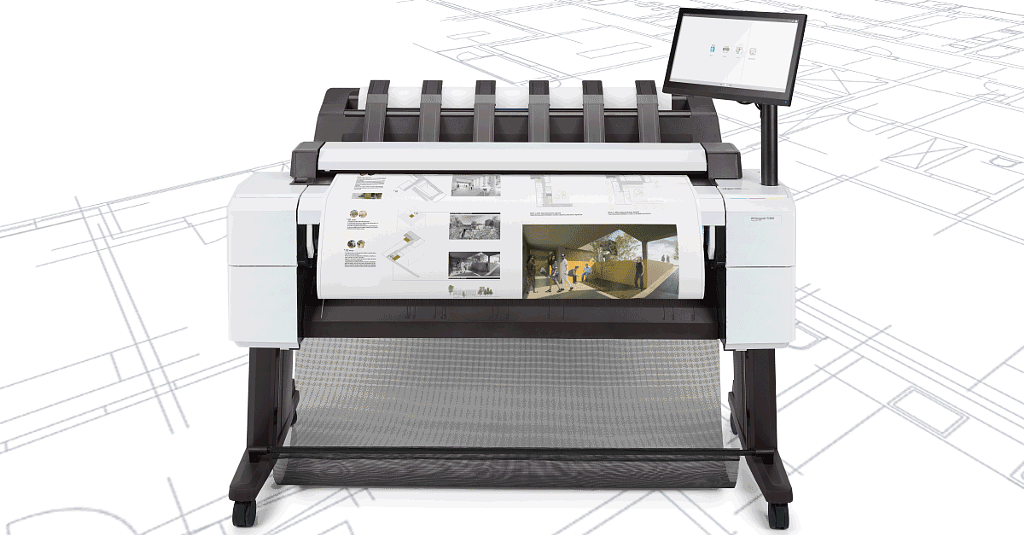

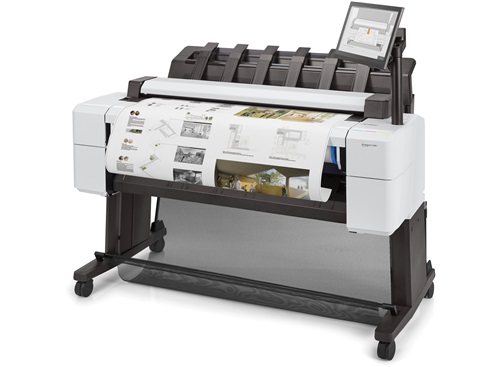

HP DesignJet T2600 36-in MFP Printer (3XB77A)
HP DesignJet T2600 36-in PS MFP Printer (3XB78A)
HP DesignJet T2600dr 36-in MFP Printer (Y3T75A)
HP DesignJet T2600dr 36in PS MFP Printer (3EK15A)
Direkayasa untuk kolaborasi - Ubah kelompok kerja Anda menjadi tim yang sangat efisien
Pekerjaan mulus - Dirancang untuk semua pekerjaan
Aman - Printer format besar paling aman di dunia
Kinerja Maksimal - Mengubah Desain anda menjadi produk nyata
Print speed: 170 A1/hr, 19.3 sec/A1
Print resolution: Up to 2400 x 1200 optimised dpi
Technology: HP Thermal Inkjet
Margins Roll: 3 x 3 x 3 x 3 mm
Sheet: 3 x 22 x 3 x 3 mm
Ink types: Dye-based (C, M, Y, pK, G); pigment-based (mK)
Printheads: 1 universal printhead
Line accuracy: ±0.1%
Minimum line width: 0.02 mm (PDF addressable @ 1200 dpi)
Scan speed: Scan: Up to 7.62 cm/sec (colour, 200 dpi), up to 25.4 cm/sec (grayscale, 200 dpi)
Copy: Up to 15.24 cm/sec (colour, 200 dpi), up to 25.4 cm/sec (grayscale, 200 dpi)
Scan resolution: Up to 600 dpi
Scan format: JPEG, TIFF and multipage TIFF, PDF and multipage PDF
Scan destinations: USB, shared network folder, printer HDD, email
Maximum scan length: 50 m (PDF), 12 m (TIFF), 8 m (JPEG)
Thickness: 0.8 mm
Handling: Sheet feed, automatic front-loading roll feed, smart roll switching5, integrated output stacker, media bin, automatic horizontal cutter Scanner: straight-through scan paper path for sheet and cardboard originals
Roll size: 279 to 914 mm
Sheet size: 210 x 279 to 914 x 1219 mm
Standard sheets: A4, A3, A2, A1, A0
Thickness: Up to 0.5 mm
Line drawings; Maps; Orthophotos; Presentations; Renderings
Memory: 128 GB (file processing)
Hard disk: 500 GB self-encrypting
Interfaces Gigabit Ethernet (1000Base-T), Wi-Fi (with optional Jetdirect accessory), supporting the following standards: TCP/IP,
BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4 only), SNMP (v1, v2c, v3), Apple Bonjour Compatible, WS Discovery,
Embedded Web Server (HTTP, HTTPS), IPsec, SMTP (email), Raw IP printing (9100), LPD, IPP, WS print, NTLM v2, SMBv3,
SSL/TLS, 802.1X authentication (LEAP, PEAP, EAP-TLS), DFS
Print languages (standard) PostScript Printer: Adobe PostScript 3, Adobe PDF 1.7, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4
Non-PostScript Printer: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4
Printing paths Direct printing from USB flash drive, print from network shared folder, email printing, HP driver for Windows, HP Print
Service for Android, Apple AirPrint driver for macOS and for iOS, HP Print for Chrome OS, HP Click, HP Smart App for iOS
and Android
Drivers PostScript Printer: Raster, PostScript and PDF drivers for Windows, AirPrint for macOS
Non-PostScript Printer: Raster drivers for Windows, AirPrint for macOS
HP Secure Boot, Whitelisting, TPM, Role Based Access Control, LDAP and Kerberos authentication, SNMPv3, HTTPS,
Secure-IPP, IPsec/Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible, HP
JetAdvantage Security Manager compatible, Secure Disk erase (DoD 5220.22-M), Secure File erase, self-encrypting HDD,
encrypted PIN printing, Syslog security logging
Printer 1390 x 760 x 1240 mm
Shipping 1477 x 767 x 800 mm
Printer Single-roll: 106 kg, dual-roll: 109 kg
Shipping Single-roll: 137 kg, dual-roll: 142 kg
HP DesignJet T2600 Multifuntion Printer, printer stand and media bin, 15.6" touchscreen, spindle(s)7, printheads, introductory ink cartridges, user guide, power cords
HP Click, HP mobile, ePrint and iOS/Android support plus the HP Smart app for mobile, HP Web Jetadmin, HP JetAdvantage
Security Manager, HP SmartTracker (optional)
Operating temperature 5 to 35ºC
Operating humidity 20 to 80% RH
Storage temperature -25 to 55ºC
Sound pressure 42 dB(A) (operating), 32 dB(A) (idle), <17 dB(A) (sleep)
Sound power ≤5.9 B(A) (operating), ≤4.9 B(A) (idle), ≤3.5 B(A) (sleep)
Consumption 120 W (printing); <36 W (ready); <1 W (<10 W with embedded Digital Front End) (sleep); 0.3 W (off)
Requirements Input voltage (auto ranging) 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max
Safety USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Ukraine (UA);
Singapore (PSB); China (CCC); Argentina (IRAM); Mexico (NYCE); India (BIS)
Electromagnetic Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New
Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)
Environmental ENERGY STAR, ErP, WEEE, RoHS (EU, China, Korea, India), REACH, EPEAT
One-year limited hardware warranty
