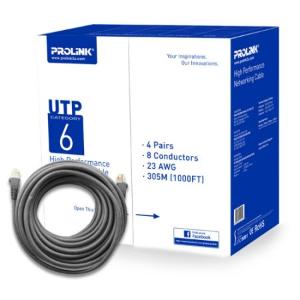

PROLiNK CAT6 UTP LAN Cable

SKU : -

Harga : Call

Dapatkan harga terbaik Kami

CONSTRUCTION - Conductor : 23 AWG (4 pair) - Conductor Diameter : 0.56±0.02mm - Insulation : High Density Polyethylene - Insulation Diameter : 0.93±0.02mm - Pairs : 2 Insulated conductors twisted together - Cable Diameter : 5.6±0.15mm - Printing : Each meter printed with sequential length counter - Jacket Nominal Wall Thickness : 0.7±0.01mm - Insulation Nominal Wall Thickness : 0.2mm ELECTRICAL PROPERTIES - Characteristic Impedance : 64kHz 125 ±20% ; 1~250MHz: 100 ±15% - Conductor Resistance : MAX 18 /100m at 20°C - Insulation Resistance : MIN 150M /KM - Mutual Capacitance : MAX 5600pf/100M - Resistance Unbalance : MAX 5% - Capacitance Unbalance : MAX 300pf/100M COLOUR CODE - Pair No : Colour - A : White-Blue Stripe and Blue - B : White-Orange Stripe and Orange - C : White-Green Stripe and Green - D : White-Brown Stripe and Brown MECHANICAL PROPERTIES - Operating Temperature : 75 C PACKING : Easy-pull boxes/Cable length of 305M

Brand :

prolink

Keterangan Lainnya :

FOB Jakarta
